40ft Flat Racks Containers

The 40ft Flat Rack Container is designed for transporting oversized cargo that doesn’t fit into standard containers. With collapsible ends and no side walls, it’s ideal for heavy machinery, vehicles, industrial equipment, and other bulky items. Designed with a robust steel frame and collapsible end walls, it offers unmatched flexibility for top and side loading.

Fully compliant with ISO standards for seamless intermodal transport.
Easy loading/unloading at ports, depots, and job sites.
Collapsible ends allow stacking when empty.
Built to withstand harsh marine and overland conditions.

KEY FEATURES

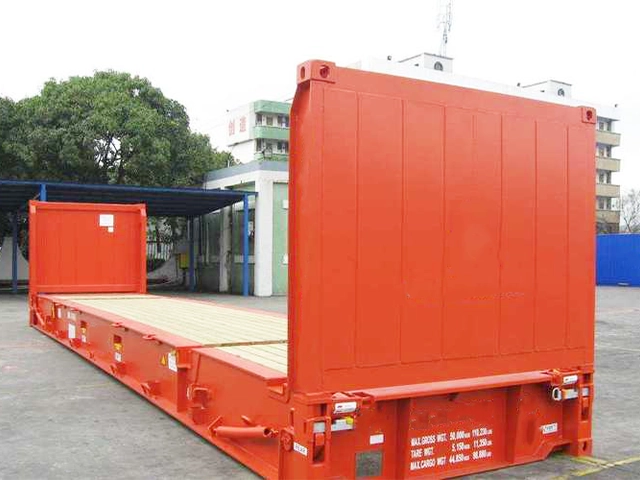

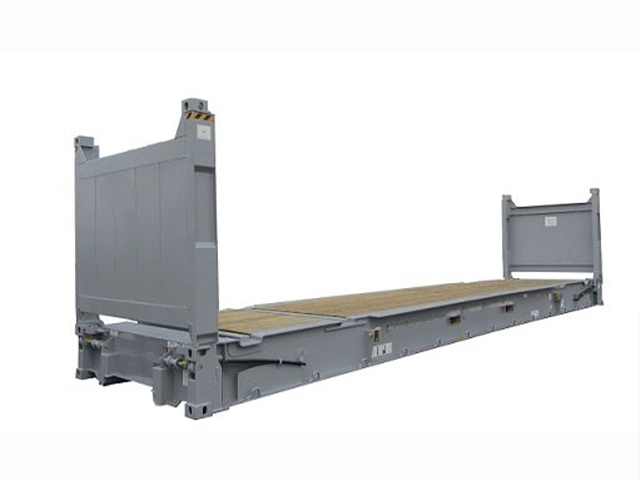

40ft Flat Rack Container

Versatility

Flat racks are versatile for transporting irregularly shaped or oversized cargo. Their open sides and collapsible end walls allow for flexibility in loading and securing items.

Heavy Cargo Transport

Flat racks are ideal for heavy machinery, pipes, steel coils, vehicles, and other bulky goods.

Easy Loading and Unloading

The lack of sidewalls simplifies loading and unloading processes.

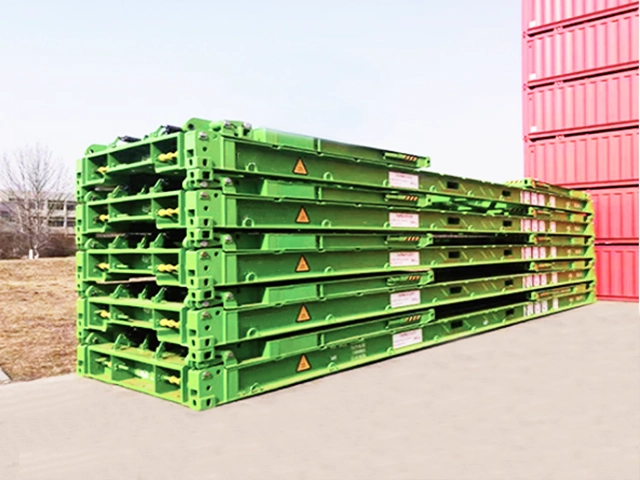

Collapsible Design

Some flat racks can be collapsed when not in use, saving space during return shipments.

Stability

Flat racks have strong corner posts and base structures, ensuring stability during transit.

Cost-Effective

Compared to specialized containers, flat racks are cost-effective for specific cargo types.

INFORMATION

Dimensions of 40ft Flat Racks Containers

The dimensions and door openings of all containers correspond to ISO standards. However, due to production tolerances, a difference in measurement is possible.

Technical Specifications
Length (Base bottom casting	12,192 mm	40’ 0.0”
Width (Base bottom casting	2,438 mm	8’ 0.0”
Height (End frame up)	2,591 mm	8’ 6.0”
Height (End frame down)	648 mm	2’ 1.5”

Internal Dimensions
Length (Between end panels)	12,182 mm	39’ 11.6”
Width (Over bottom side rail)	2,374 mm	7’ 9.5”
Height (Side rail to top castings)	1,959 mm	6’ 5.1”
